DJI Matrice 5TD: The Dock Drone for Day and Night

Three 50 MP cameras, a 1280 × 1024 thermal camera and a laser rangefinder with 3 km range – all in one drone. Plus LiDAR, radar and 17 onboard AI detection types.

The Matrice 5TD is designed specifically for operation with DJI Dock 4.

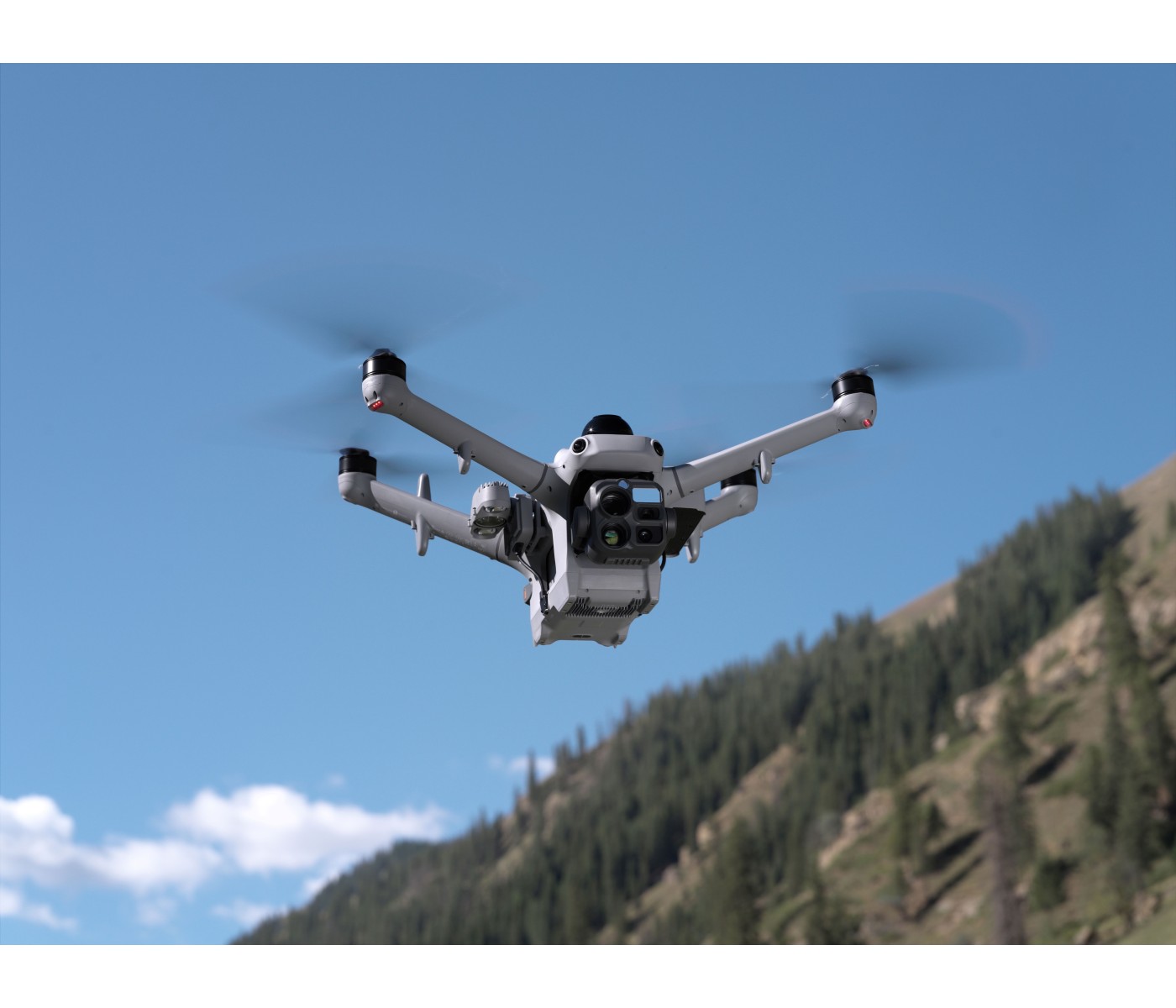

DJI Matrice 5TD with speaker in operation over a forest

59 min

flight time

1280 × 1024

thermal

3 km

laser rangefinder

17

AI detection types

DJI Matrice 5TD vs. Matrice 4TD

Feature Matrice 4TD Matrice 5TD
Cameras 3 × 48 MP 3 × 50 MP
Thermal resolution 640 × 512 1280 × 1024
Laser rangefinder up to 1.8 km up to 3 km
Hybrid zoom up to 112× up to 176×
Flight time up to 54 min up to 59 min
Onboard AI detection 3 categories 17 object types
LiDAR & radar optional accessory built in
Operating temperature −20 °C to +50 °C −40 °C to +50 °C
Compatible dock DJI Dock 3 DJI Dock 4

Details

Camera System
  • Wide-angle: 50 MP, 1/0.98-inch CMOS, 23.5 mm equivalent, f/1.8
  • Medium tele: 50 MP, 1/1.28-inch CMOS, 70 mm equivalent (3×), f/2.88
  • Tele: 50 MP, 1/1.5-inch CMOS, 252 mm equivalent (11×), f/2.8 – up to 176× hybrid zoom
  • 4K full-colour night vision without a spotlight, plus NIR auxiliary light for black-and-white night vision
  • Laser rangefinder up to 3,000 m with PinPoint coordinates in the live feed
  • Surveying: accuracy of approx. 10 cm with 12 MP images
  • Lens defogging on all three cameras, 3-axis gimbal
Thermal Camera
  • 1280 × 1024 pixels (uncooled VOx microbolometer, 8 µm), up to 2560 × 2048 in UHR mode
  • Sensitivity ≤ 50 mK, f/0.85 lens, 32× digital zoom
  • Temperature measurement from −40 to 150 °C (high gain) or 0 to 550 °C (low gain), spot and area measurement
  • Fusion mode: visible and thermal image in one frame – outlines and heat distribution at a glance
  • Radiometric R-JPEG images, temperature alerts
Obstacle Sensing & Safety

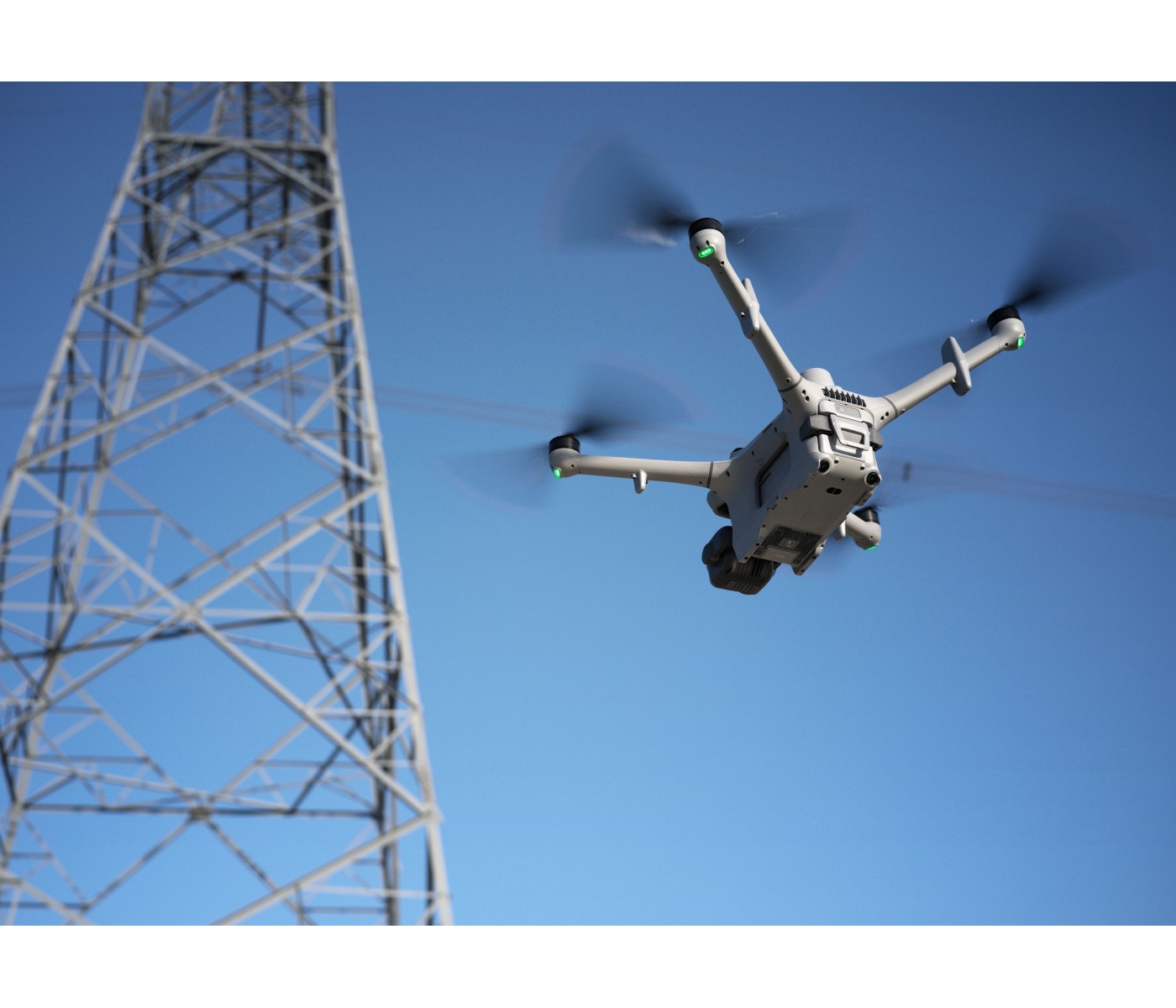

DJI Matrice 5TD bottom view with sensors at a substation
  • Rotating LiDAR (360°), mmWave radar forward, upward and downward plus omnidirectional colour vision
  • Detects thin wires such as power lines – even at night
  • Independent Flight Termination System (FTS) – a key technical requirement for C6 compliance
  • DJI AP1 Parachute with automatic or manual deployment
  • Built-in customisable warning light and beacon
  • Remote ID and detection of Remote ID-equipped DJI drones within 200 m
Flight Performance & Weather Resistance
  • Up to 59 min flight time, up to 55 min hover time
  • Operating radius up to 10 km, max. flight distance 53 km
  • Up to 21 m/s in FlyTo missions (otherwise 15 m/s) – ideal for DFR
  • Wind resistance 12 m/s, Wind-Exceed Descend-and-Return in strong winds
  • IP55, operation from −40 °C to +50 °C, anti-ice propellers
  • Built-in RTK, weight 2,600 g, max. take-off weight 3,050 g
Transmission & Data
  • DJI O4 Enterprise Enhanced – up to 12 km range (CE), live view in 1080p/30 fps
  • Latency to the FlightHub 2 cloud: 160 ms
  • Dual 4G modules in the drone for added connection reliability
  • Data download up to 20 MB/s via O4 or up to 80 MB/s via Wi-Fi after landing in the dock
AI & Software
  • 17 object types in real time, e.g. people, vehicles, boats, animals, smoke and fire
  • DJI FlightHub 2: search for objects by text or image, notifications via SMS or email
  • Automatic actions when anomalies are detected: photo, video, tracking or hovering

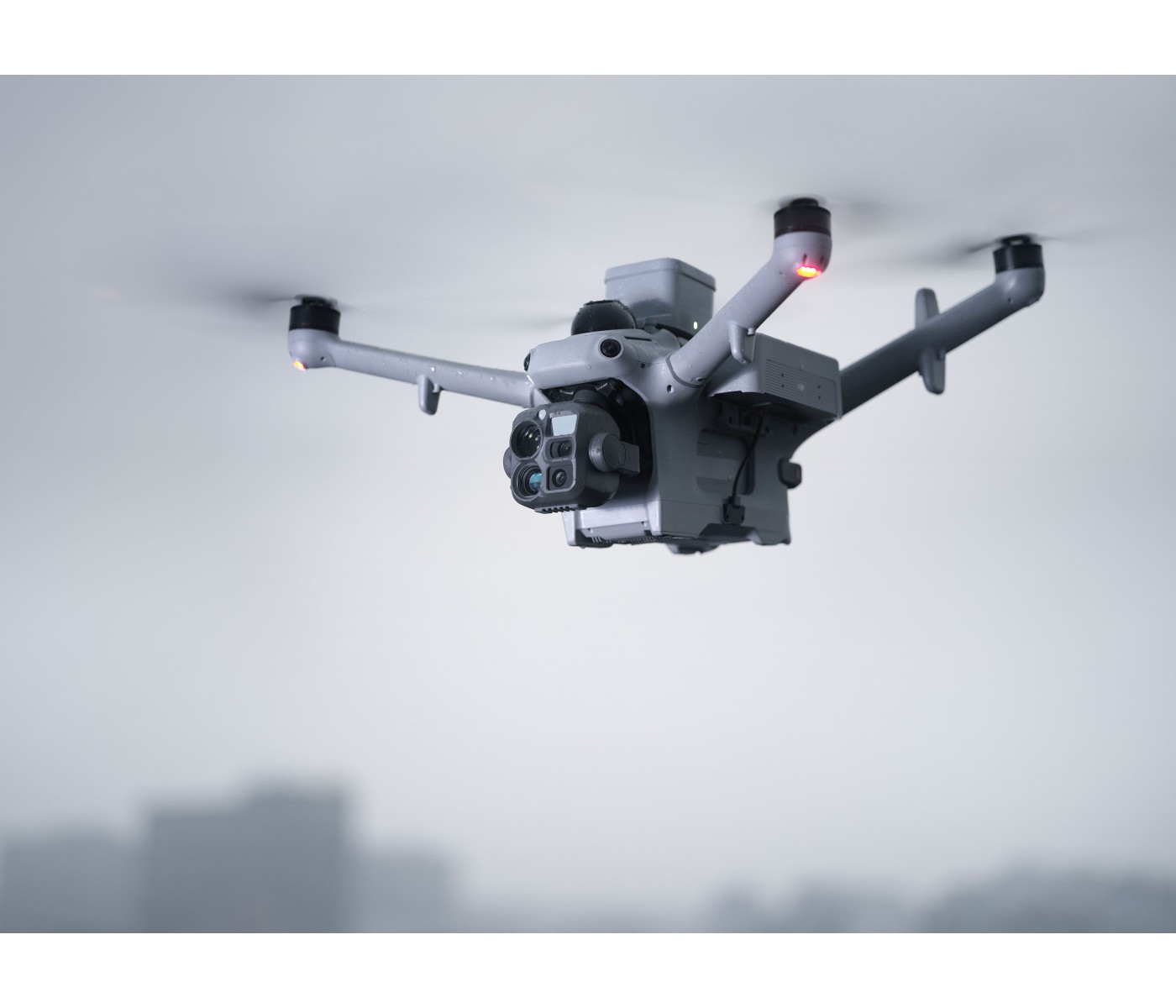

Accessories: Spotlight, Speaker, Parachute

Up to 450 g payload on three mounting points (both sides and top, with the Matrice 5TD Accessory Mount):

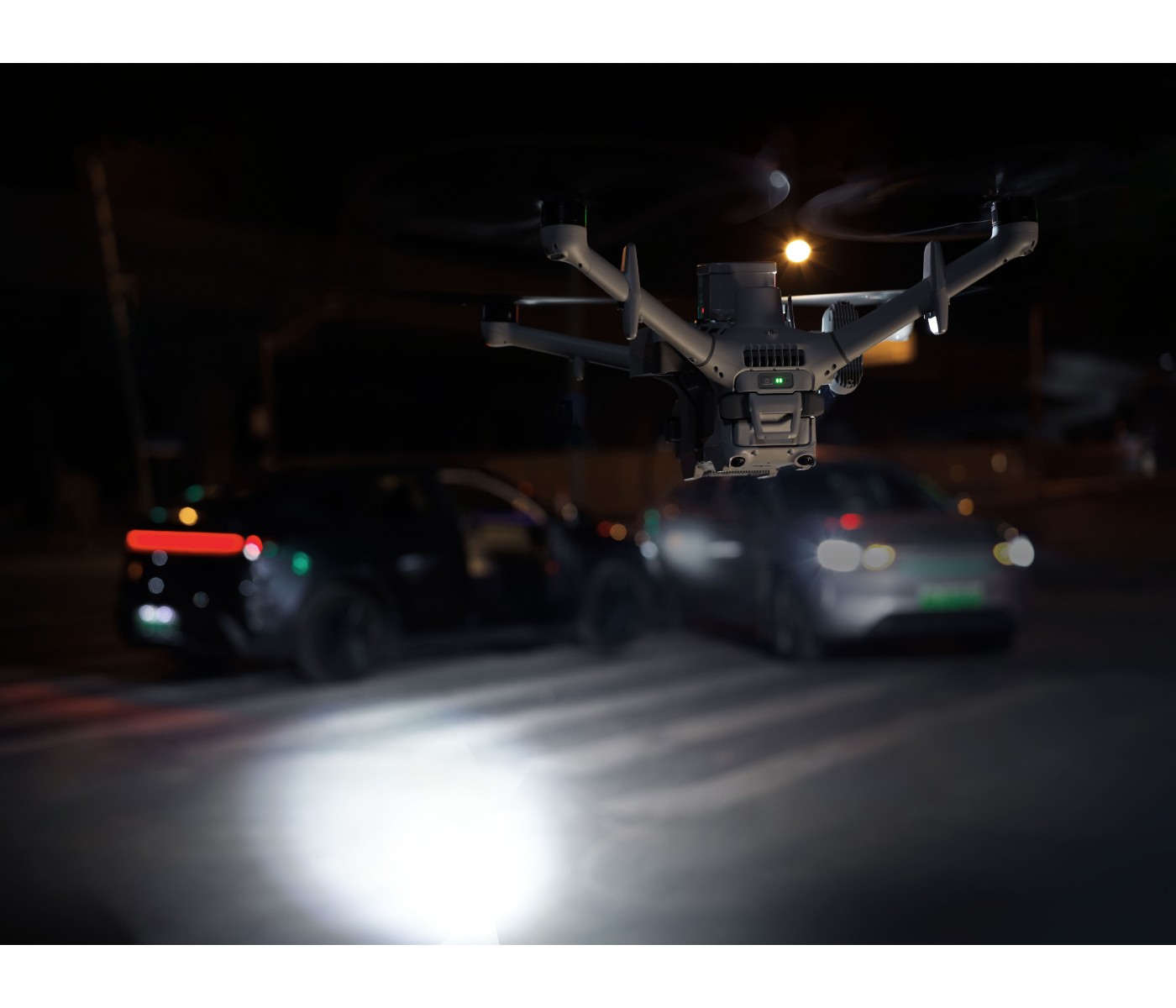

  • DJI AL2D Spotlight: approx. 11 lux at 100 m, spot and flood light
  • DJI AS2D Loudspeaker: 120.5 dB at 1 m, 400 m broadcast range, text-to-speech in several languages
  • DJI AP1 Parachute: automatic deployment in 600 ms, independent FTS link
From Dock to Daily Operations with ProFlyCenter

DJI Matrice 5TD FAQ

Can I fly the Matrice 5TD without a dock?

The Matrice 5TD is designed for automated operation with DJI Dock 4 and is controlled via DJI FlightHub 2 or the DJI Enterprise App. If you are looking for a drone for manual operation with a remote controller, we will be happy to advise you on a suitable alternative.

What is the difference between the Matrice 4TD and the Matrice 5TD?

The Matrice 5TD doubles the thermal resolution (1280 × 1024 instead of 640 × 512) and offers a laser rangefinder with 3 km instead of 1.8 km, 50 MP instead of 48 MP cameras, built-in LiDAR and radar, and 17 instead of 3 AI detection categories. It works with DJI Dock 4, while the Matrice 4TD works with DJI Dock 3.

When will the Matrice 5TD be available?

The DJI Matrice 5TD is available for pre-order now. Pre-order customers are the first to hear from us as soon as delivery dates are confirmed.

Do I need an authorisation to operate it?

Automated flights beyond visual line of sight (BVLOS) generally require an operational authorisation in the specific category. We support you with training, the operations manual and SORA all the way to your authorisation.
